Crane System Pipe & Box Culvert Machine Ø800–3000 mm

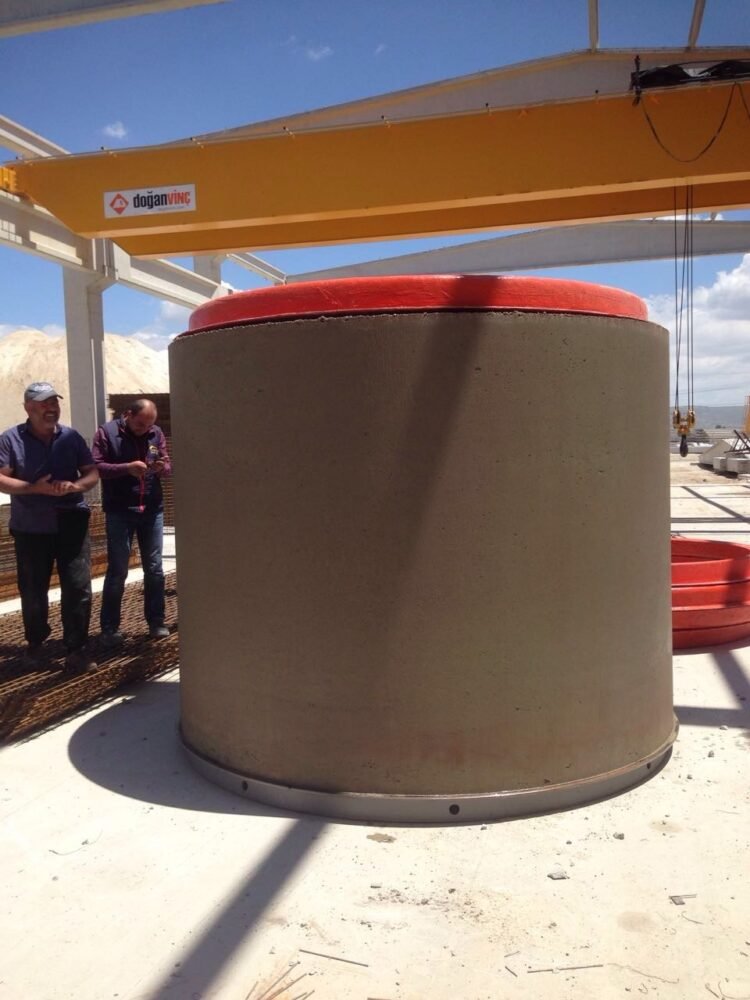

Crane system machine for reinforced concrete pipes Ø800 to Ø3000 mm and box culverts up to 3000×3000 mm. One machine, only the mould changes.

Machine system: Crane system
Pipe diameter: Ø800 to Ø3000 mm
Box culvert: 1000×1000 to 3000×3000 mm
Pipe length: 2,000 mm
Reinforcement: Steel cage
Built in: Türkiye

Request a quote WhatsApp

Matched to your specification. Offers from suitable Turkish manufacturers, compared side by side.

Meet the maker. Video call or factory visit in Türkiye before you decide.

Secure payment. Advance payment or letter of credit, set out in the contract.

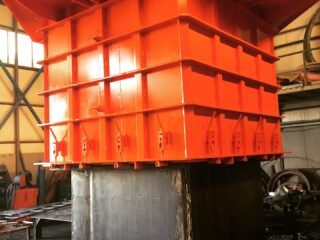

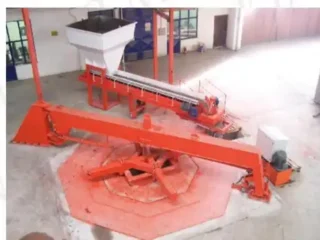

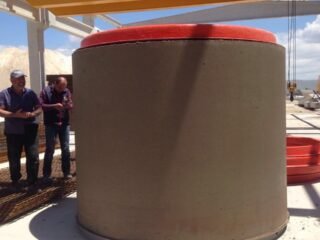

A crane system machine for large diameter pipes and box culverts. Moulds are moved by overhead crane, which lets one machine cover pipes from Ø800 to Ø3000 mm and box culverts from 1000×1000 to 3000×3000 mm. Changing product means changing the mould set, not the machine.

Reinforced steel-cage production as standard
Manual control, 22 kW vibration
Movable belt-feeder concrete bunker, 2.5 m³
Integrated gasket or drop-section gasket joints

Pipes are produced to TSE 821 and EN 1916. Pallets and gaskets for each diameter can be supplied by VDA.

Production tables

Output by size

Typical values from manufacturer documentation, per 8 hour shift. Final figures are confirmed in the manufacturer's offer for your project.

Pipes, output per 8 hour shift

Diameter	Wall thickness	Pipe weight	Pipes per 8 h
Ø800 mm	100 mm	1,470 kg	30
Ø1000 mm	120 mm	2,200 kg	30
Ø1200 mm	140 mm	3,100 kg	25
Ø1400 mm	160 mm	4,270 kg	25
Ø1600 mm	185 mm	5,700 kg	20
Ø1800 mm	185 mm	5,400 kg	15
Ø2000 mm	205 mm	6,600 kg	15
Ø2200 mm	220 mm	8,100 kg	15
Ø2400 mm	245 mm	9,500 kg	10
Ø2600 mm	265 mm	11,300 kg	10
Ø2800 mm	295 mm	13,700 kg	10
Ø3000 mm	325 mm	16,200 kg	10

Pipe length 2,000 mm.

Box culverts, output per 8 hour shift

Size	Wall thickness	Weight	Units per 8 h
1000×1000 mm	100 mm	1,050 kg	25
1000×1500 mm	150 mm	2,050 kg	20
1500×1500 mm	150 mm	2,350 kg	20
2000×1500 mm	200 mm	3,800 kg	15
2000×2000 mm	200 mm	4,250 kg	15
2500×2500 mm	250 mm	6,600 kg	10
3000×3000 mm	300 mm	9,500 kg	5

Box culvert length 1,000 mm.

Technical data

Specifications

Typical values from manufacturer documentation. Final figures are confirmed in the manufacturer's offer for your project.

Control	Manual
Vibration	22 kW
Concrete feed	Movable belt-feeder bunker, 2.5 m³
Mould handling	Overhead crane
Joints	Integrated or drop-section gasket
Pipe standards	TSE 821, EN 1916

From manufacturer documentation. Final figures are confirmed in the offer for your project.

FAQ

Questions buyers ask

Can the same machine make pipes and box culverts?

Yes. Pipes from Ø800 to Ø3000 mm and box culverts up to 3000×3000 mm run on one machine. Only the mould set changes.

Can I start with fewer moulds and add more later?

Yes. The diameter range and mould count are chosen at order, based on what your market buys most. Additional mould sets and pallets can be added when demand grows.

What is included in installation and training?

The manufacturer installs and commissions the machine on site and trains your operators. Your team prepares the foundation, power supply and lifting equipment. Trial production is checked on a test press for crack load and watertightness.

What are typical delivery and payment terms?

Delivery is usually 30 to 45 days from the down payment and approved drawings. Payment is commonly 50% in advance and 50% before shipment by T/T or L/C, on EXW, FOB or CIF terms. Final terms are set in the contract.

What warranty and spare parts support is offered?

The manufacturer gives a one year warranty and keeps spare parts available for 10 years. Wear parts such as pallets and gaskets are supplied on demand, and VDA can supply them as a running order.
