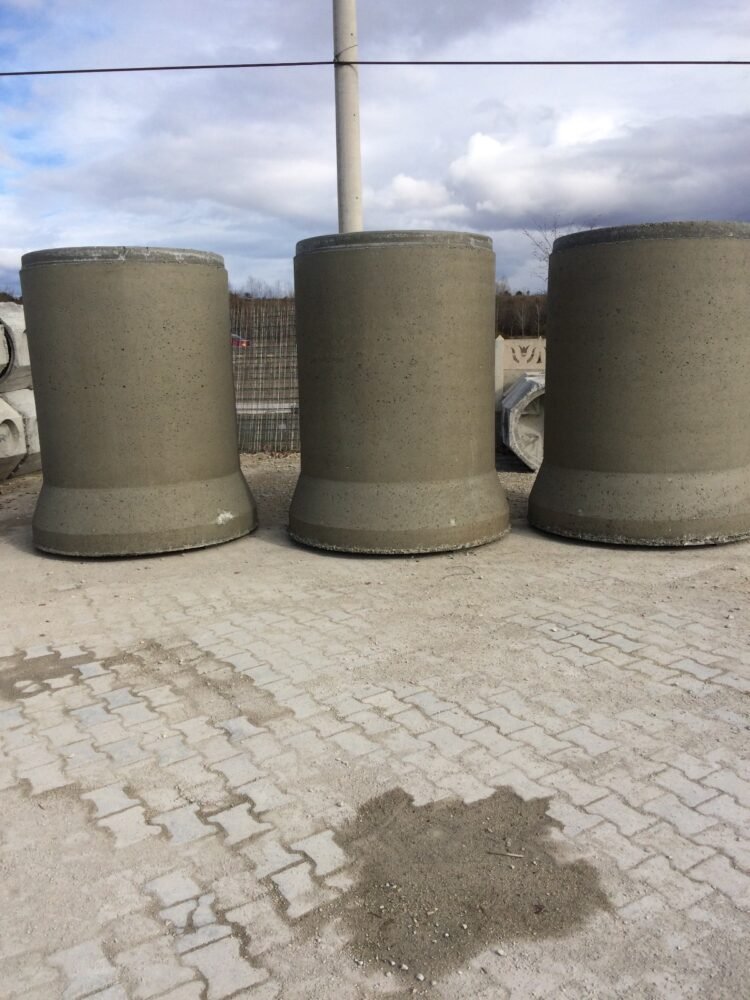

Concrete Pipe & Culvert Machines
Concrete pipe, box culvert and manhole machines from Ø150 to Ø3000 mm, configured around what you will produce. Elevator system for serial small and medium diameters, crane system for large pipes and box culverts.
Configured to what you will produce
Start from your end product, diameter range and daily output. The machine system, mould set and pallets follow from that. Most plants start with the sizes their market buys most and add moulds later.
| You will produce | Machine system | Size range | Why this configuration |
|---|---|---|---|
| Small diameter sewer and drainage pipes | Elevator system, up to 3 moulds | Ø150 to Ø600 mm | Several moulds per cycle for high daily counts, no overhead crane in the cycle |
| Medium diameter sewer and stormwater pipes | Elevator system, 1 or 2 moulds | Ø300 to Ø1400 mm | Crane-free serial production, about twice the output of a crane-handled machine |
| Large diameter pipes, plain or reinforced | Crane system | Ø800 to Ø3000 mm | Steel-cage reinforced pipes up to Ø3000 mm on one machine |
| Box culverts | Crane system | 1000×1000 to 3000×3000 mm | Same machine as large pipes, only the mould set changes |
| Manhole rings, cones and top rings | Elevator system | Ø800 to Ø1500 mm | Serial ring and cone production with quick mould changes |
| Manhole bases with pipe openings | Crane system | Ø800 to Ø1500 mm, 2000×2000 mm | Inlet and outlet openings Ø150 to Ø1200 mm formed during casting |
Elevator system machines
For serial production of small and medium diameter pipes and manhole rings and cones. The machine lifts the core and moulds itself, so no overhead crane is needed in the production cycle. Mould count and diameter range are set to your market, and more moulds can be added later.
Elevator System Concrete Pipe Machine Ø150–600 mm
Elevator system vertical vibration machine for Ø150 to Ø600 mm concrete pipes with integrated gasket. Up to three moulds per cycle for…
View details
Elevator System Concrete Pipe Machine Ø300–1400 mm
Elevator system machine for Ø300 to Ø1400 mm concrete pipes, 1,000 or 2,000 mm long. Crane-free serial production for sewer and stormwater…
View details
Elevator System Manhole Ring & Cone Machine
Elevator system machine for manhole rings Ø800 to Ø1500 mm and cones up to Ø1500/620 mm, for sewer, stormwater, telecom and hydrant…
View detailsCrane system machines
For large diameter pipes up to Ø3000 mm, box culverts and manhole bases. Moulds are moved by overhead crane, which keeps one machine flexible across many sizes and shapes. Reinforced steel-cage production is standard.
Crane System Pipe & Box Culvert Machine Ø800–3000 mm
Crane system machine for reinforced concrete pipes Ø800 to Ø3000 mm and box culverts up to 3000×3000 mm. One machine, only the…
View details
Crane System Manhole Base Machine
Crane system machine for manhole bases Ø800 to Ø1500 mm and 2000×2000 mm, with inlet and outlet openings from Ø150 to Ø1200…

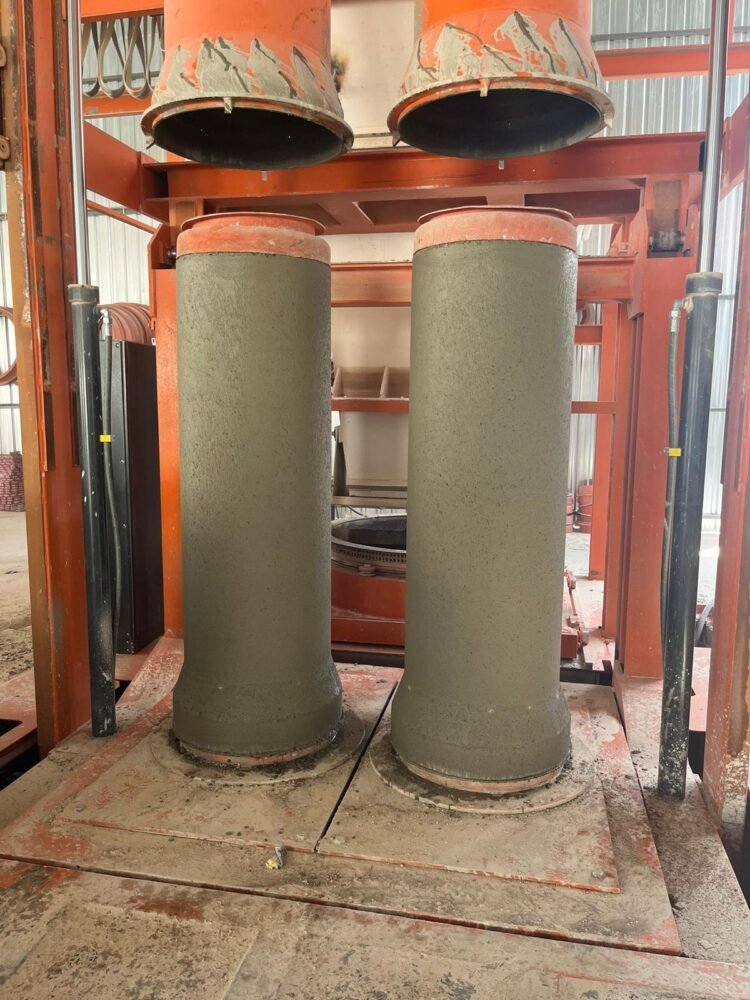

View detailsSteel pallets & integrated gaskets
Every pipe leaves the machine on a steel pallet, and the joint is only as good as that pallet. VDA supplies pallets and gaskets with your machine and as a running supply afterwards, matched to your diameters and joint type.
- Bottom pallets and top rings for each diameter, CNC-machined and press-formed
- Integrated gasket and drop-section gasket pallets for watertight joints
- Rubber gaskets matched to the pallet profile and your pipe standard
- Extra pallet sets to raise daily output without a second machine
- OEM-equivalent and alternative options for machines already in your plant
From project brief to installation
- 01
Share your project
Product, application, target capacity, country and timeline.
- 02
Technical scope clarified
We turn your requirements into a clear specification that manufacturers can quote on.
- 03
Offers compared
Quotations from suitable Turkish manufacturers, side by side.
- 04
Meet the maker
Video call or factory visit in Türkiye before you decide.
- 05
Contract & secure payment
Advance payment or letter of credit, set out in the contract.
- 06
Production to installation
We coordinate production, shipment and installation with the manufacturer.
Tell us what you need.
Whether you are planning a production line or need parts and materials for a running project, send us the basics and we will come back with the next steps.
