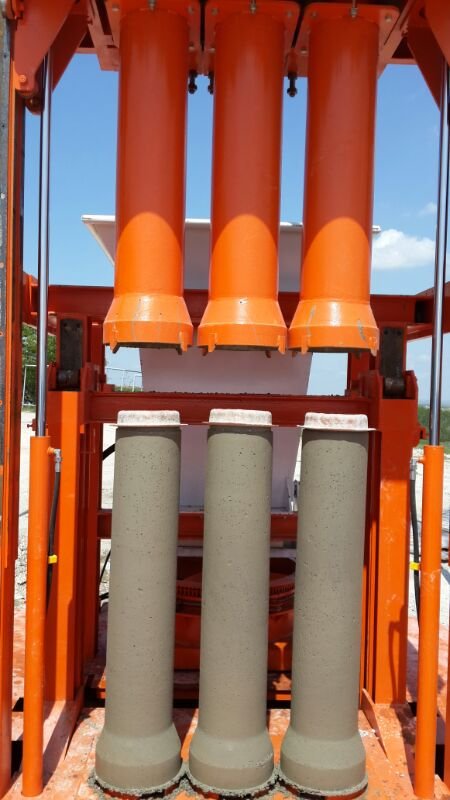

Elevator System Concrete Pipe Machine Ø150–600 mm

Elevator system vertical vibration machine for Ø150 to Ø600 mm concrete pipes with integrated gasket. Up to three moulds per cycle for high daily output.

Machine system: Elevator system
Pipe diameter: Ø150 to Ø600 mm
Pipe length: 1,500 mm
Moulds per cycle: Up to 3
Joint: Integrated gasket
Built in: Türkiye

Request a quote WhatsApp

Matched to your specification. Offers from suitable Turkish manufacturers, compared side by side.

Meet the maker. Video call or factory visit in Türkiye before you decide.

Secure payment. Advance payment or letter of credit, set out in the contract.

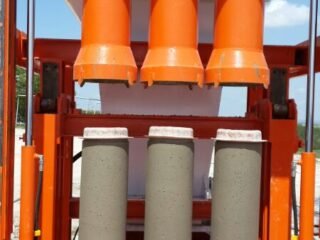

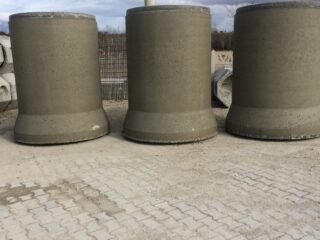

An elevator system machine for serial production of small diameter pipes. The machine lifts the core and moulds itself, so the production cycle runs without an overhead crane. Pipes are 1,500 mm long with an integrated gasket joint and leave the machine on their steel pallets by forklift.

Configured to your diameters

Three moulds per cycle for Ø150 and Ø200 mm
Two moulds per cycle for Ø300 mm
One mould for Ø400 to Ø600 mm
Start with the diameters your market buys most and add mould sets later

Pipes are produced to TSE 821 and EN 1916. Steel pallets and integrated gaskets for every diameter can be supplied by VDA with the machine and as a running supply.

Production tables

Output by size

Typical values from manufacturer documentation, per 8 hour shift. Final figures are confirmed in the manufacturer's offer for your project.

Output per 8 hour shift

Diameter	Wall thickness	Moulds per cycle	Pipes per 8 h
Ø150 mm	38 mm	3	450
Ø200 mm	42 mm	3	450
Ø300 mm	55 mm	2	300
Ø400 mm	60 mm	1	150
Ø500 mm	67 mm	1	150
Ø600 mm	75 mm	1	150

Pipe length 1,500 mm, integrated gasket joint.

Technical data

Specifications

Typical values from manufacturer documentation. Final figures are confirmed in the manufacturer's offer for your project.

Control	Semi-automatic, hydraulic
Vibration	3 × 11 kW, 3,000 rpm
Hydraulic unit	18.5 kW, 300 l/min
Concrete feed	Mortar cart 5.5 kW, bunker 2 m³
Pipe standards	TSE 821, EN 1916

From manufacturer documentation. Final figures are confirmed in the offer for your project.

FAQ

Questions buyers ask

Can I start with fewer moulds and add more later?

Yes. The diameter range and mould count are chosen at order, based on what your market buys most. Additional mould sets and pallets can be added when demand grows.

Do I need an overhead crane?

Not for the production cycle. The elevator system lifts the core and moulds itself, and finished pipes are moved on their pallets by forklift.

What is included in installation and training?

The manufacturer installs and commissions the machine on site and trains your operators. Your team prepares the foundation, power supply and lifting equipment. Trial production is checked on a test press for crack load and watertightness.

What are typical delivery and payment terms?

Delivery is usually 30 to 45 days from the down payment and approved drawings. Payment is commonly 50% in advance and 50% before shipment by T/T or L/C, on EXW, FOB or CIF terms. Final terms are set in the contract.

What warranty and spare parts support is offered?

The manufacturer gives a one year warranty and keeps spare parts available for 10 years. Wear parts such as pallets and gaskets are supplied on demand, and VDA can supply them as a running order.
