Machinery & Plant Sourcing · Asphalt Plants

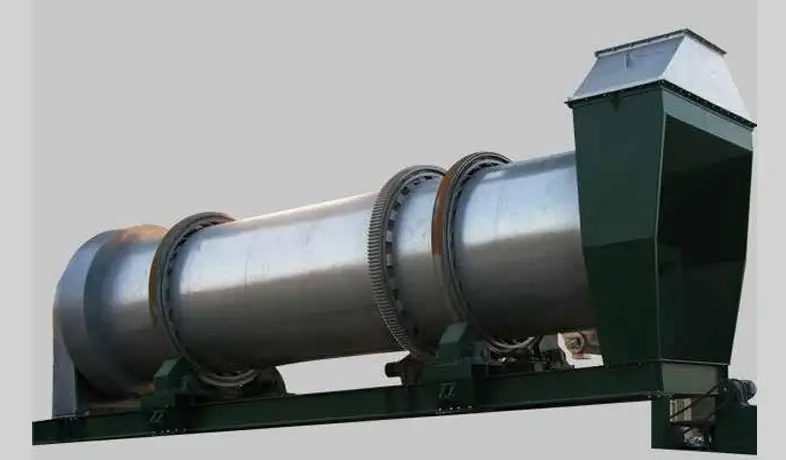

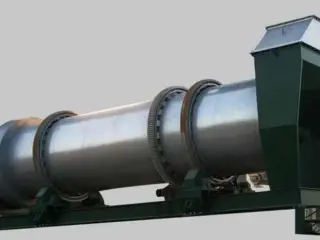

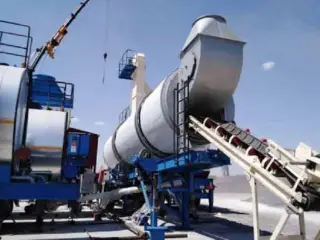

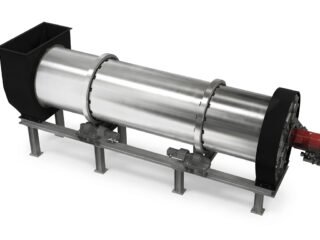

Asphalt plant rotary dryer and burner

Rotary drum dryers with burners that remove moisture from aggregate and heat it to mixing temperature, for new plants or as replacements.

Function: Dry and heat aggregate
Drive: Rings and trunnion rollers
Burner fuels: Diesel, heavy fuel oil, natural gas, LPG
Supplied: New plant or replacement

Indicative figures based on manufacturer data. Capacity and specification are confirmed in each offer.

Request a quote WhatsApp

Matched to your specification. Offers from suitable Turkish manufacturers, compared side by side.

Meet the maker. Video call or factory visit in Türkiye before you decide.

Secure payment. Advance payment or letter of credit, set out in the contract.

What does the dryer do in an asphalt plant?

The rotary dryer is an inclined steel drum that turns while a burner fires hot gas through it. Lifting flights welded inside the drum carry aggregate up and drop it as a curtain through the gas stream, so moisture evaporates and the stone reaches mixing temperature. Dried aggregate leaves the drum hot, and the exhaust gas and dust go to the filter.

The dryer is the largest energy user on an asphalt plant. Industry data from the US National Asphalt Pavement Association shows that each 1% of aggregate moisture adds about 10% to drying fuel, and that worn flights, an uninsulated shell and an untuned burner all raise consumption. Dryer size, flight design and burner capacity are therefore chosen together for the plant’s output at your typical aggregate moisture.

Which burner fuel is best?

Natural gas burns cleanest where a pipeline exists. Diesel and heavy fuel oil are widely available on remote sites, and heavy oil needs heating before it is sprayed. Dual-fuel burners let you switch with fuel prices.

Key components

Main parts

Drum shell

Inclined steel drum, often with insulation and cladding to cut heat loss.

Lifting flights

Internal flights that create an even curtain of aggregate through the hot gas.

Riding rings and trunnion rollers

Forged rings and rollers that carry and turn the drum.

Drive system

Motors and gear units, often with frequency control.

Burner

Liquid, gas or dual-fuel burner with modulating control.

Inlet and outlet hoods

Seal the drum ends and lead exhaust gas to the filter.

Technical data

Specifications

Typical values from manufacturer documentation. Final figures are confirmed in the manufacturer's offer for your project.

Drum type	Rotary, counterflow or parallel flow
Burner fuel	Diesel, heavy fuel oil, natural gas, LPG or dual-fuel
Drive	Trunnion rollers with geared motors
Sizing basis	Plant output at stated aggregate moisture

Drum diameter, length and burner rating are confirmed in the manufacturer's offer.

Who it's for

Built for these buyers

Plant owners upgrading output

Replace an undersized dryer or burner.

New plant buyers

Specify the dryer to local aggregate moisture and fuel.

FAQ

Questions buyers ask

How does an asphalt dryer drum work?

The inclined drum rotates while a burner blows hot gas through it. Flights lift aggregate and drop it through the gas, which removes moisture and heats the stone before it goes to the screen or mixing zone.

How does aggregate moisture affect fuel use?

Moisture is the biggest factor. NAPA data shows each 1% of moisture adds roughly 10% to drying fuel, so covered, well-drained stockpiles reduce costs.

What is the difference between counterflow and parallel flow dryers?

In a counterflow dryer aggregate moves against the gas flow, which recovers more heat. In a parallel flow dryer both move in the same direction. Batch plants generally use counterflow dryers.

Can a dryer be replaced on an existing plant?

Yes. Give us the plant capacity, current drum size, burner fuel and layout, and we will source a matching drum, burner or flight set.
