Semi-Automatic Block & Paver Machine, 4 Blocks per Cycle
3,840 blocks or 11,520 pavers per 8-hour shift
- Operation
- Semi-automatic
- Power supply
- 80 kVA
- Minimum plant area
- 3,000 m²
Ready stock · Block & paver machines

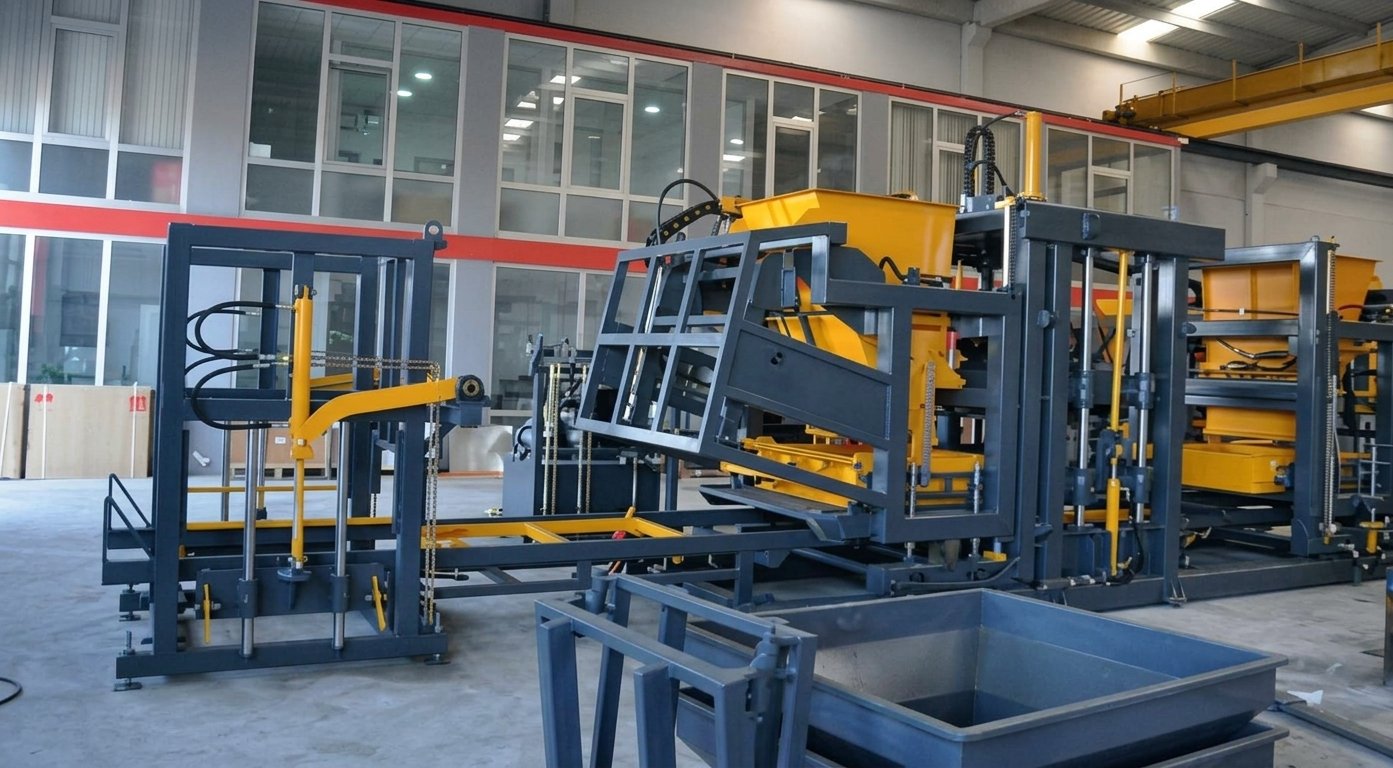

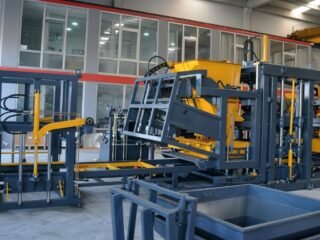

Automatic Block & Paver Machine, 12 Blocks per Cycle
A higher-output automatic machine with a 1200 x 1150 mm production pallet. Produces 800-900 m² of paving per shift.
- Operation
- Automatic
- Power supply
- 110 kVA
- Minimum plant area
- 4,000 m²
- Production pallet
- 1200 x 1150 mm
- Personnel
- 3 people
Figures from manufacturer documentation. Availability and specification are confirmed in our offer.
Built and waiting. The machine is in stock at the manufacturer in Türkiye.
Moulds to your products. Moulds are not included and are made to order for your block and paver sizes.
See it before you buy. Video call or factory visit in Türkiye.
Technical data
Output and plant requirements
Values from manufacturer documentation. Pieces per cycle depend on product dimensions. Final figures are confirmed in our offer.
Availability is confirmed at the time of your request. Listed machines may be sold without prior notice.
Pieces per cycle
| Hollow block 190 x 390 x 185 mm | 12 |
|---|---|
| Hollow block 150 x 390 x 185 mm | 14 |
| Hollow block 100 x 390 x 185 mm | 22 |
| Interlock paver 197 x 165 mm (h 60 / 80 / 100 mm) | 30 |
| Hexagon paver 200 mm (h 60 / 80 / 100 mm) | 35 |
| Cycle time | Blocks 20 s, pavers 25 s |
Output
| Typical per hour | 3,600 pavers or 1,440 blocks |
|---|---|
| Typical per 8-hour shift | 28,800 pavers or 11,520 blocks |
| Maximum per 8-hour shift | 43,200 pavers or 17,280 blocks |
| Paving area per 8-hour shift | 800-900 m² |

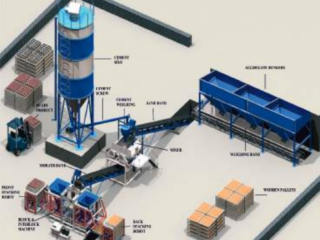

Plant requirements
| Minimum plant area | 4,000 m² |
|---|---|
| Machinery / drying / finished product / aggregate / empty pallets | 600 / 1,600 / 1,200 / 500 / 100 m² |
| Power supply required (transformer or generator) | 110 kVA |
| Installed power | 85 kW |
| Personnel | 3 (2 operators, 1 forklift driver) |
Machine
| Operation | Automatic |
|---|---|
| Control | Hydraulic, PLC with auto / manual mode |
| Production pallet | 1200 x 1150 mm |
| Machine size (W x L x H) | 2.2 x 7 x 2.5 m |
| Machine weight | 37,000 kg |
| Condition | New |
| Moulds | Not included. Made to order for your block and paver dimensions. |
| Products (with the matching moulds) | Hollow blocks, interlock and hexagon pavers, curbstones, rain gutters, grass pavers |
Request a quote
Get a quote for VDA-RS-005
- Send your name, company and country.
- We confirm availability with the manufacturer.
- You receive price and delivery terms for your destination.
- Prefer WhatsApp? +90 543 797 58 57
