Mobile Concrete Batching Plant, 70 m³/h

Ready stock · New · Türkiye VDA-RS-007

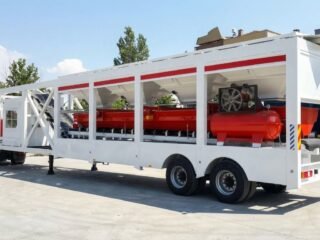

A mobile batching plant on a single-axle chassis, for contractors who move between project sites. Pan mixer, three-compartment aggregate bunker, one 100 t cement silo and fully automatic PLC control.

Capacity: 70 m³/h
Mixer: Pan mixer, 1.3 m³
Aggregate bunker: 3 x 15 m³ (45 m³)
Cement silo: 1 x 100 t
Type: Mobile, single axle

Figures from manufacturer documentation. Availability and specification are confirmed in our offer.

Built and waiting. The plant is in stock at the manufacturer in Türkiye.

Installed by the manufacturer. Their team installs the plant, runs test production and trains your operator.

See it before you buy. Video call or factory visit in Türkiye.

Technical data

Plant specification

Values from the manufacturer's technical offer. Final scope is confirmed in our offer.

Availability is confirmed at the time of your request. Listed machines may be sold without prior notice.

General

Type	Mobile, single-axle chassis with 4 tyres
Rated capacity	70 m³/h
Control cabin	Mounted on the plant
Condition	New

Aggregate

Aggregate bunker	3 compartments x 15 m³ (45 m³ total), St 37 steel 5 mm
Bunker vibrator	1 x 0.38 kW
Bunker gates	80 x 300 mm pneumatic cylinders for precise dosing
Aggregate weighing belt	1.5 m³ weighing capacity, 7.5 kW drive
Transfer belt	800 x 10,000 mm, chevron belt, 11 kW drive

Mixer

Type	Pan mixer
Wet concrete volume per batch	1.3 m³
Drive	45 kW motor, 1450 rpm, 4-stage gearbox
Shell and liners	St 37 10 mm shell; ST52 10 mm wear-resistant liners
Mixing paddles	High-manganese chrome alloy cast steel

Weighing

Cement scale	850 kg, load cells 3 x 2,000 kg
Water scale	600 kg, load cells 3 x 1,000 kg
Admixture scale	15 l, load cell 1 x 150 kg

Cement, water and air

Cement silo	1 x 100 t with electronic filter and level indicators
Cement screw conveyor	1 x Ø219 x 8,000 mm, 9 kW
Water pump	4 kW, 45 t/h
Air compressor	300 l, 4 kW, 8 bar

Automation

Control	Fully automatic PLC; manual override possible at every stage
Recipes	Create, save, edit and delete recipes on screen
Records and reports	Customer details stored; production report for each delivery
Protection	All motors protected against voltage fluctuations; warning on weighing values outside calibration limits

Installation and site works

Installation	By the manufacturer's team, including test production and operator training
Provided by the buyer	Civil foundations to the manufacturer's drawings, electrical supply to the plant, water line to the plant
Provided by the buyer for installation	Mobile crane, welding machine and helpers
Installation team	Visa, travel and accommodation paid by the buyer
