Mobile Concrete Batching Plant
Batching plant on a towable chassis for project sites: fast installation on a thin, flat concrete base and easy relocation to the next project.
- Capacity
- 60 to 200 m³/h
- Installation
- From about 8 hours (self-erecting) to 9 days
- Foundation
- Thin, flat concrete base
- Transport
- Main unit towed by truck tractor
- Control
- PLC with SCADA records
Indicative figures based on manufacturer data. Capacity and specification are confirmed in each offer.

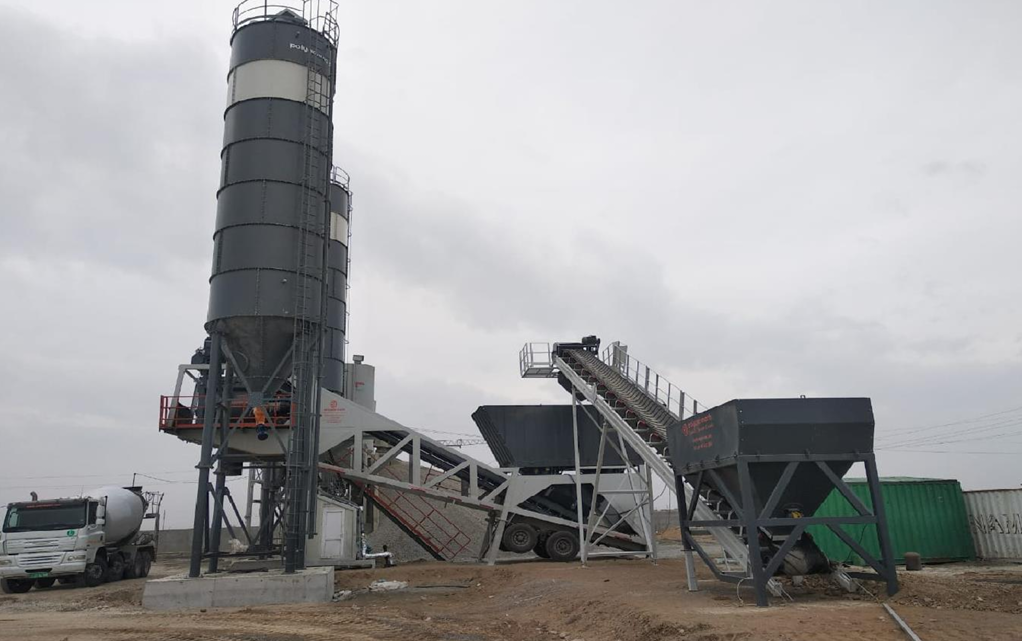

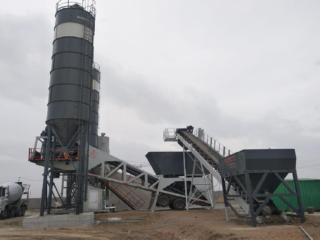

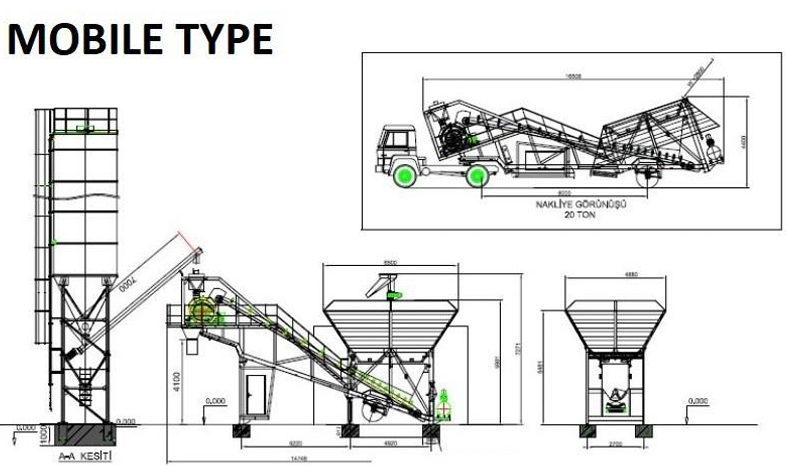

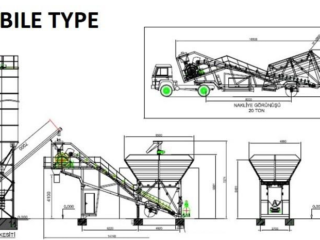

A mobile plant carries the main units of a batching plant on a chassis with axles and wheels: aggregate hopper, aggregate weighing conveyor, cement, water and admixture scales, and the mixer. A truck tractor tows the main unit; cement silos, screw conveyors and filters travel on standard trucks or in containers.
Why contractors choose mobile
- Easier transport and faster installation, dismantling and relocation.
- Less space and less foundation: a thin, flat concrete base is usually enough.
- Installation in about 7 to 9 days, compared with 14 to 21 days for a medium stationary plant. Self-erecting models with hydraulic legs set up without a crane in about one working day.
- Two-chassis versions carry up to 8 aggregate bins on a separate trailer with a lower loading ramp.
- Cabling, water and pneumatic piping are installed at the factory.
- Fully automatic PLC control with SCADA based production records.
Aggregate feeding can be through a ramp or an aggregate pre-feeding system, either compact (shipped by truck or container) or mobile on its own axle.

Output by size
Typical values from manufacturer documentation, per 8 hour shift. Final figures are confirmed in the manufacturer's offer for your project.
Main data by plant size
| Plant size | 60 m³/h | 100 m³/h | 120 m³/h | 160 m³/h | 200 m³/h |
|---|---|---|---|---|---|
| Mixer, dry / compacted (litres) | 2,000 / 1,000 | 3,000 / 2,000 | 4,500 / 3,000 | 6,000 / 4,000 | 7,500 / 5,000 |
| Concrete per batch (m³) | 1.0 | 2.0 | 3.0 | 4.0 | 5.0 |
| Mixer drive (kW) | 2 × 18.5 | 2 × 37 | 2 × 55 | 2 × 75 | 2 × 90 |
| Aggregate weigher (kg) | 3,000 | 6,000 | 9,000 | 12,000 | 15,000 |
| Water weigher (litres) | 300 | 600 | 900 | 1,200 | 1,500 |
Indicative manufacturer data. Larger 2.25 and 3.33 m³ mixers are available as options.
Specifications
Typical values from manufacturer documentation. Final figures are confirmed in the manufacturer's offer for your project.
| Capacity options | 60, 100, 120, 160, 200 m³/h |
|---|---|
| Mixer | Twin shaft, 1 to 5 m³ per batch |
| Aggregate bins | 4 standard, up to 8 on two-chassis versions |
| Set-up | Hydraulic self-erecting legs, no crane (self-erecting models) |
| Control | PLC with SCADA records and remote access |
| Example: 100 m³/h plant | 2.0 m³ twin-shaft mixer, 4 × 15 m³ aggregate bins, about 165 kW installed power |
Values from manufacturer documentation. Layout and final specification are confirmed in the offer.
