Machinery & Plant Sourcing · Concrete Batching Plants

Stationary Concrete Batching Plant

Fixed batching plants from 30 to 240 m³/h, with twin shaft, single shaft, planetary or pan mixers and cement silos from 30 to 5,000 t.

Capacity: 30 to 240 m³/h
Mixer types: Twin shaft, single shaft, planetary, pan
Cement silos: 30 to 5,000 t
Installation: About 14 to 21 days (medium capacity)

Request a quote WhatsApp

Matched to your specification. Offers from suitable Turkish manufacturers, compared side by side.

Meet the maker. Video call or factory visit in Türkiye before you decide.

Secure payment. Advance payment or letter of credit, set out in the contract.

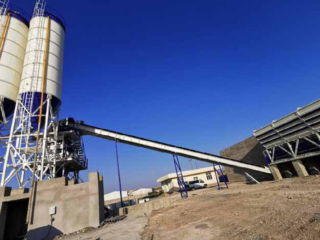

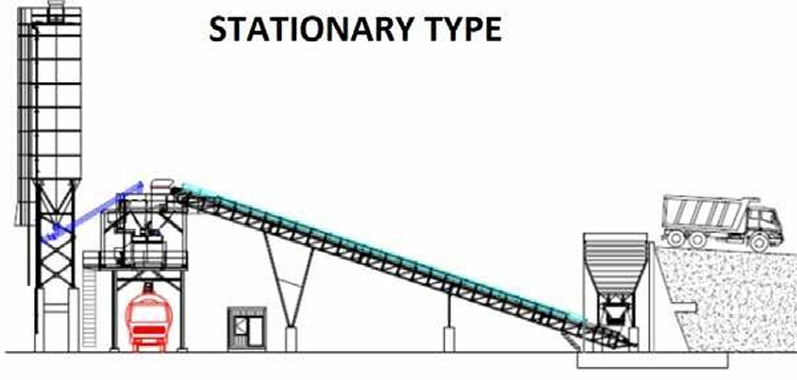

Stationary batching plants are built for permanent sites and high, steady output. Capacity, mixer type and layout are chosen for the concrete you need to produce and the conditions of your site.

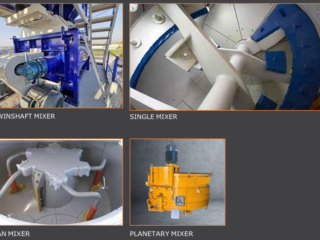

Mixers: twin shaft, single shaft, planetary or pan, selected for the concrete type. Two mixers can run in one plant for higher output.
Cement silos: 30 to 5,000 t. Silos up to 50 t can be bolted or welded; larger silos are bolted for easier transport. Fitted with dust filter, pressure relief valve, level indicators and butterfly valves.
Control: PLC based automation with recipe management, plus a manual panel for emergencies.
Climate: heating and insulated panels for cold regions; water chillers for hot regions such as the Middle East and Africa.
Aggregate feeding: loading ramp or an aggregate pre-feeding system that removes the need for a ramp.

Technical data

Specifications

Typical values from manufacturer documentation. Final figures are confirmed in the manufacturer's offer for your project.

Capacity options	30, 60, 100, 120, 160, 200, 240 m³/h
Mixers	Twin shaft, single shaft, planetary, pan
Cement silo capacity	30 to 5,000 t
Control system	PLC, recipe based, with manual panel
Cold climate option	Hot vapour heating, insulated panels
Hot climate option	Chilled mixing water

Values from manufacturer documentation. Layout and final specification are confirmed in the offer.
