Ready stock · Block & paver machines

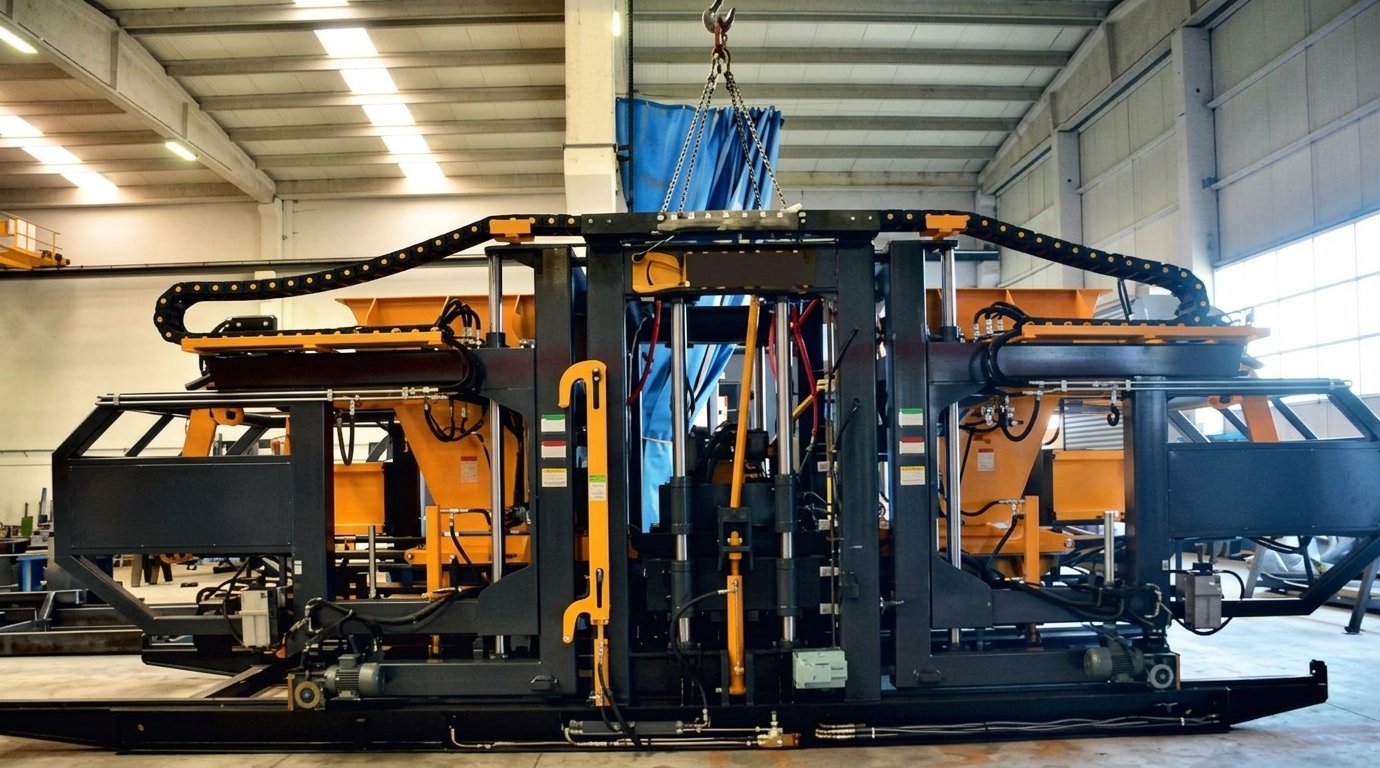

Automatic Block & Paver Machine with Cuber Robot, 15 Blocks per Cycle

Ready stock · New · Türkiye VDA-RS-006

The largest unit in stock. A cuber robot stacks cured products off the production pallets, and the stacks move by conveyor to strapping or wrapping. Two people run the full plant.

Operation: Automatic, with cuber robot
Power supply: 250 kVA
Minimum plant area: 5,500 m²
Production pallet: 1400 x 1150 mm
Personnel: 2 people

Figures from manufacturer documentation. Availability and specification are confirmed in our offer.

Built and waiting. The machine is in stock at the manufacturer in Türkiye.

Moulds to your products. Moulds are not included and are made to order for your block and paver sizes.

See it before you buy. Video call or factory visit in Türkiye.

Technical data

Output and plant requirements

Values from manufacturer documentation. Pieces per cycle depend on product dimensions. Final figures are confirmed in our offer.

Availability is confirmed at the time of your request. Listed machines may be sold without prior notice.

Pieces per cycle

Hollow block 190 x 390 x 185 mm	15
Hollow block 150 x 390 x 185 mm	18
Hollow block 100 x 390 x 185 mm	30
Interlock paver 197 x 165 mm (h 60 / 80 / 100 mm)	36
Hexagon paver 200 mm (h 60 / 80 / 100 mm)	30
Cycle time	Blocks 20 s, pavers 25 s

Output

Typical per hour	4,320 pavers or 1,800 blocks
Typical per 8-hour shift	34,560 pavers or 14,400 blocks
Maximum per 8-hour shift	51,840 pavers or 21,600 blocks
Paving area per 8-hour shift	approx. 1,000 m²

Plant requirements

Minimum plant area	5,500 m²
Machinery / drying / finished product / aggregate / empty pallets	800 / 1,800 / 1,600 / 1,000 / 300 m²
Power supply required (transformer or generator)	250 kVA
Installed power	160 kW
Personnel	2 (1 operator, 1 forklift driver)

Machine

Operation	Automatic, with cuber robot
Control	Hydraulic, PLC with auto / manual mode
Production pallet	1400 x 1150 mm
Machine size (W x L x H)	2.5 x 7.5 x 2.4 m
Machine weight	45,000 kg
Condition	New
Moulds	Not included. Made to order for your block and paver dimensions.
Products (with the matching moulds)	Hollow blocks, interlock and hexagon pavers, curbstones, rain gutters, grass pavers
